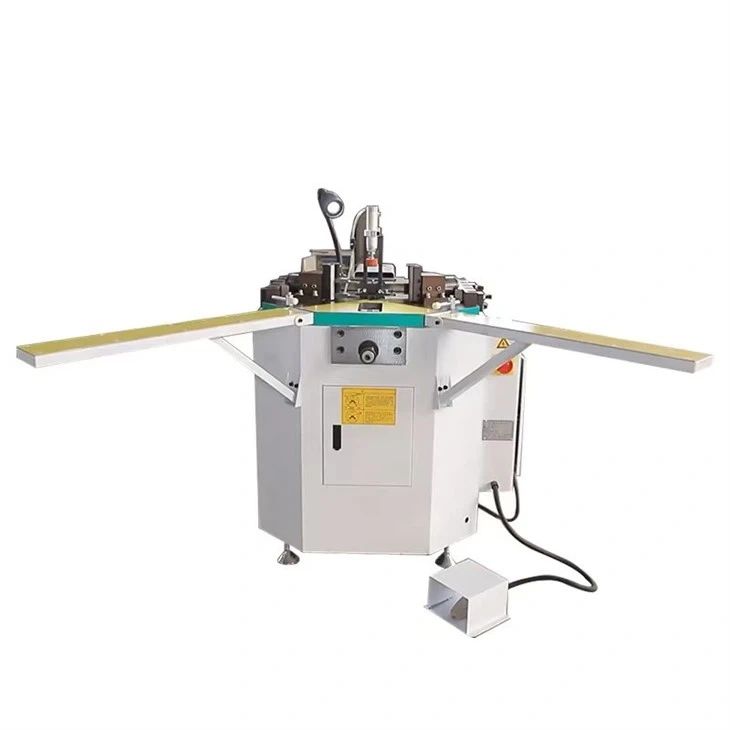

Aluminum Window and Door Corner crimping Machine is Used for aluminum
frame and sash corner crimping, especially for the high- quality profile, such as
thermal bridging profile
Power 1.5kw
Voltage 380V/50HZ
Air pressure 0.6-0.8MPa
Air consumption 20L/min
Profile crimping height Max. 120mm
Profile crimping width Max. 90mm
Hydraulic pressure 15MPa
Capability of oil box 20L
Crimping accuracy ≤0.15mm
Dimension 1100x1100x1300mm
Weight 300kg
