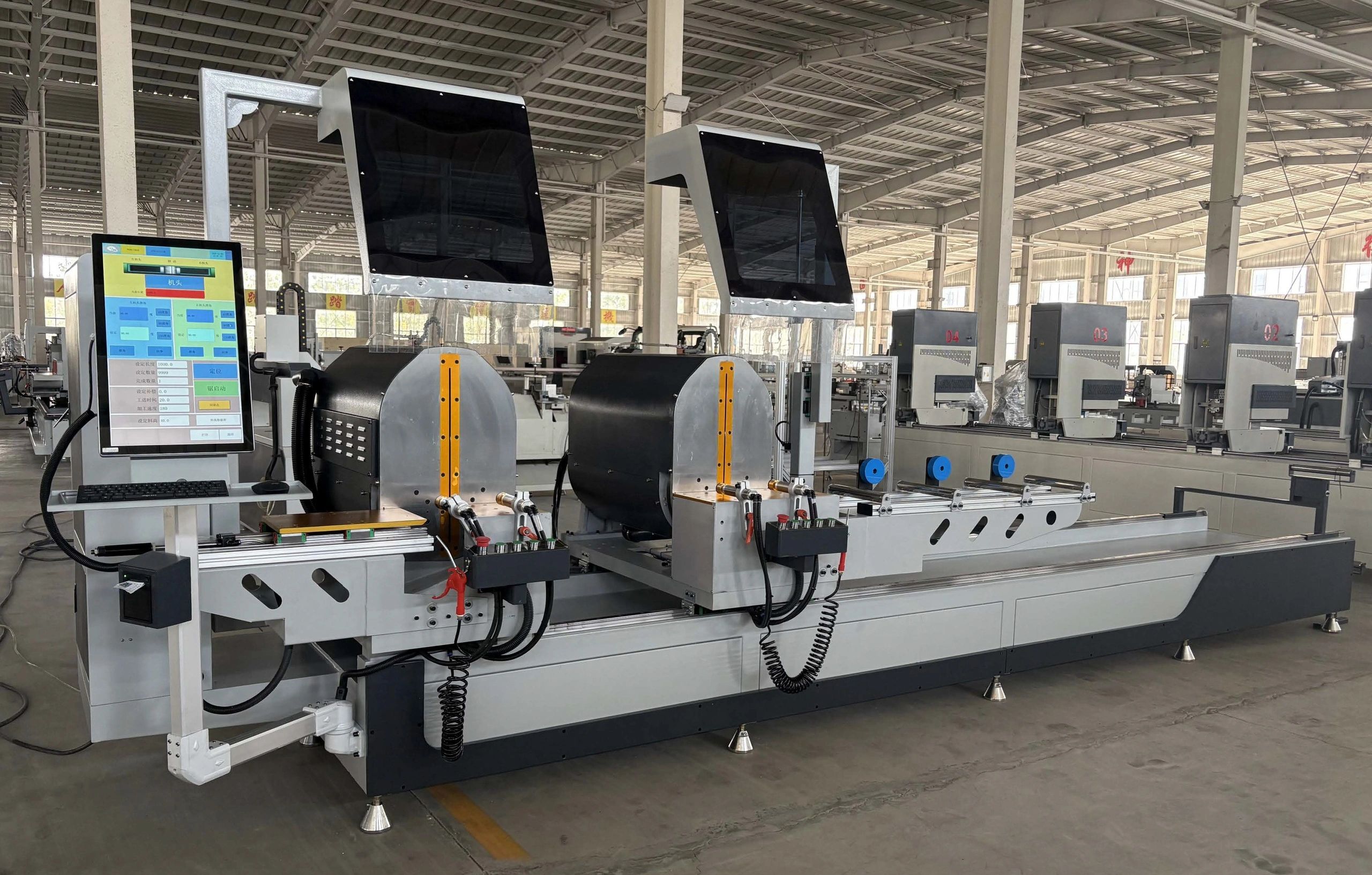

Any Angle Cutting Saw DH550
The 3 axis CNC double-head any angle cutting saw is mainly used for processing and cutting of aluminium profiles, Sawing angle -22.5°～ 0～+22.5° (arbitrary angle rotary cutting) double head sawing units equipped with Ø 550 mm of saw blades. Super short and super long cutting function allows 50 - 7800 mm cutting lengh
Technical Specifications
Input power 380V/50Hz three-phase four-wire
Saw head motor power 2×3KW
Rotation speed 2800 r/min
Working air pressure 0.5-0.8MPa
Air consumption 100L/min
Sawing length MAX 4200mm
Sawing width MAX 150 mm
Sawing height MAX 270 mm
Sawing angle -22.5°～ 0～+22.5°
External dimensions 5800×1980x1750
Weight ～ 2000 Kg.
