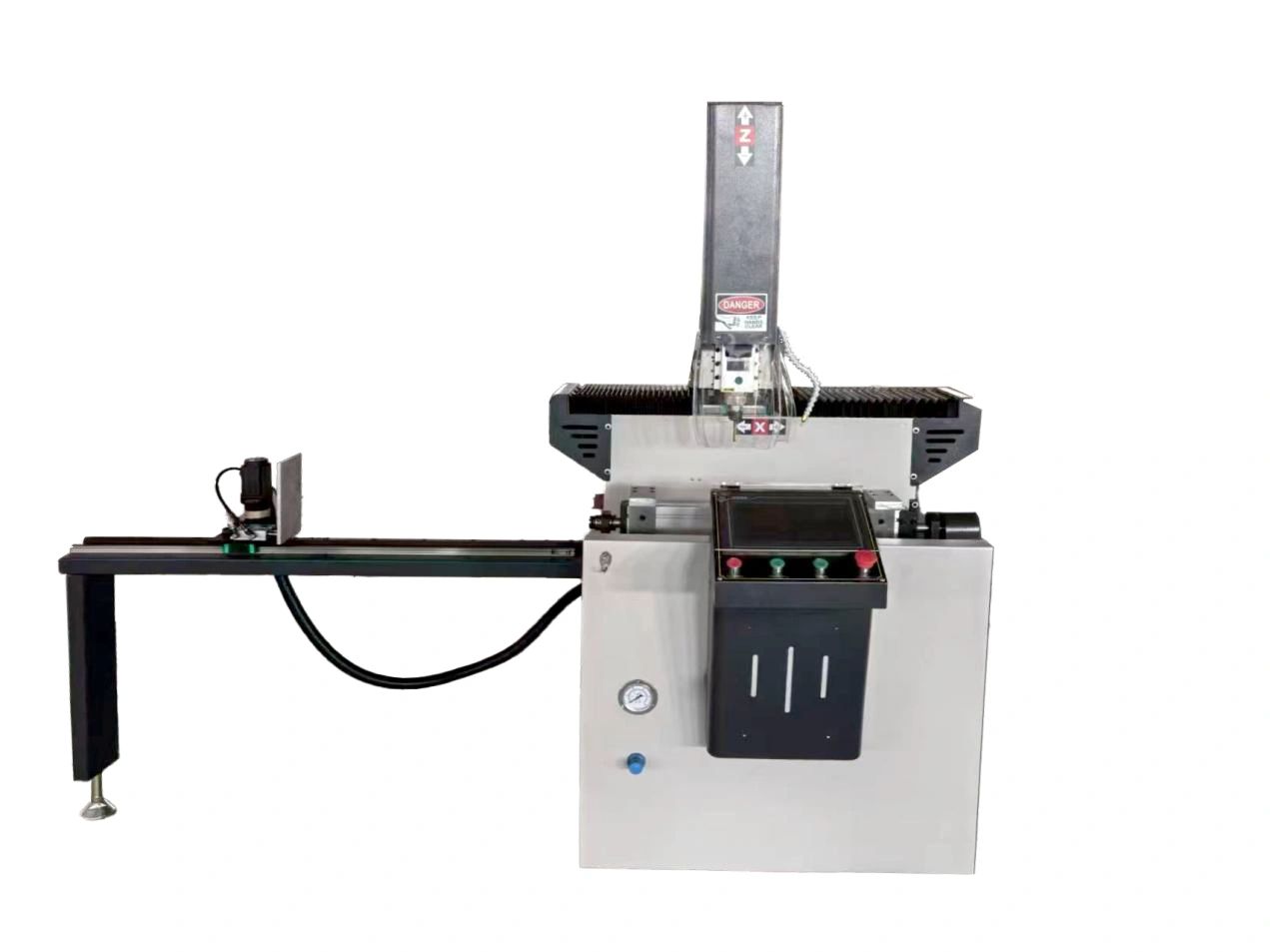

Used for milling aluminum doors, Windows and cabinet
One installation, complete the processing of three surfaces
0.75kw Servo Motor , supports multiple languages
Cutting tools and fixtures: equipped with ¢6 or ¢8 special milling cutter fixtures,
which can be configured separately according to requirements
Total power : 4.45kw
Spindle motor power: 2.2kw
Work pressure:0.5-0.8Mpa
X-axis travel 580mm 0-15mm/s
Y-axis travel 330mm 0-15mm/s
Z-axis travel 260mm 0-15mm/s
Dimensions 1390x1100x1500mm
Weight 350kg
